Conductive Cushion Gasket: EZ-Foam™ – EZ-F Series

This popular conductive cushion gasket, EZ-Foam™, has the unique combination of high conductivity in all X, Y and Z-axes, excellent EMI shielding, great grounding capabilities, as well as shock absorption. It’s a very thin, light weight, flexible, easy to cut, and versatile solution for limited space applications including smart phones, tablet PCs, navigation systems, and many more applications. A black version of our EZ-Foam (Part Number: EZ-FB) is now available in 0.2mm, 0.3mm, 0.5mm, and 0.7 thickness.

  • Cost-effective, tarnish-resistant, electrically conductive NiCu-plated polyolefin foam with conductive adhesive.
  • Excellent surface and volume conductivity.
  • Ideal for grounding or shielding applications with narrow gaps such as tablets and smart phones, and a great alternative to FoF gaskets for thin spaces.
  • Excellent shock absorption and vibration damping properties.
  • Kiss-cut die cutting for easy application.
  • Recommended compression rate between 15~30%.
  • Operating temperature: -10 ˚C ~ 85˚C

PropertyEZ-F2EZ-FB
Standard roll size (mm)Width 500*, Length 30 meters**
Thickness (mm)0.2 ± 0.10, 0.3 ± 0.10, 0.5 ± 0.10, 0.7 ± 0.10, 1.0 ± 0.15
ColorGreyBlack
Surface Resistance (Ω/sq)< 0.10< 0.20 / 1.0mm thick = < 0.30
Volume Resistance (Ω/cm)< 0.10< 0.10 / 1.0mm thick = < 0.30
Shielding Effectiveness (dB)Minimum 60Minimum 50
Operating Temperature (°C)-10 ~ +85

*1 meter width available upon request, **50 meter length available upon request

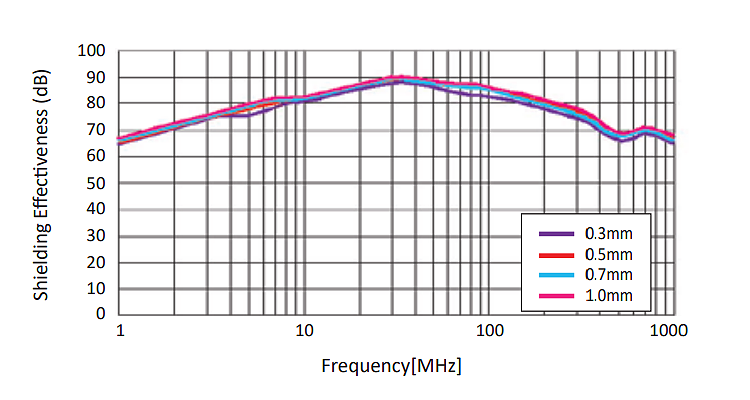

EZ-F2 Shielding Effectiveness

EZ-F2 Shielding Effectiveness

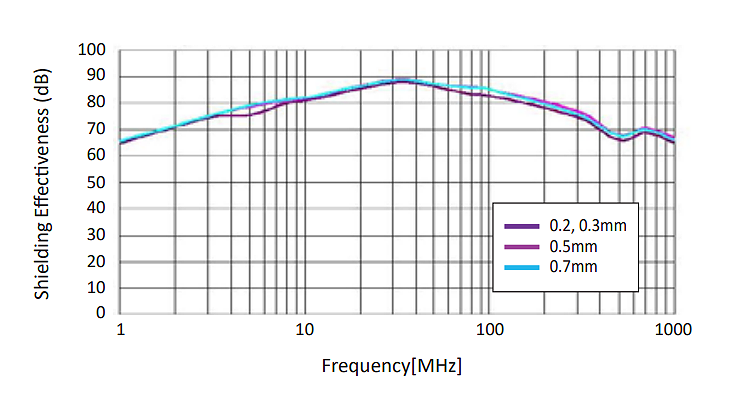

EZ-FB Shielding Effectiveness

EZ-FB Shielding Effectiveness

* Specifications and dimensions are subject to change without notice for product improvement.
